25SPA12

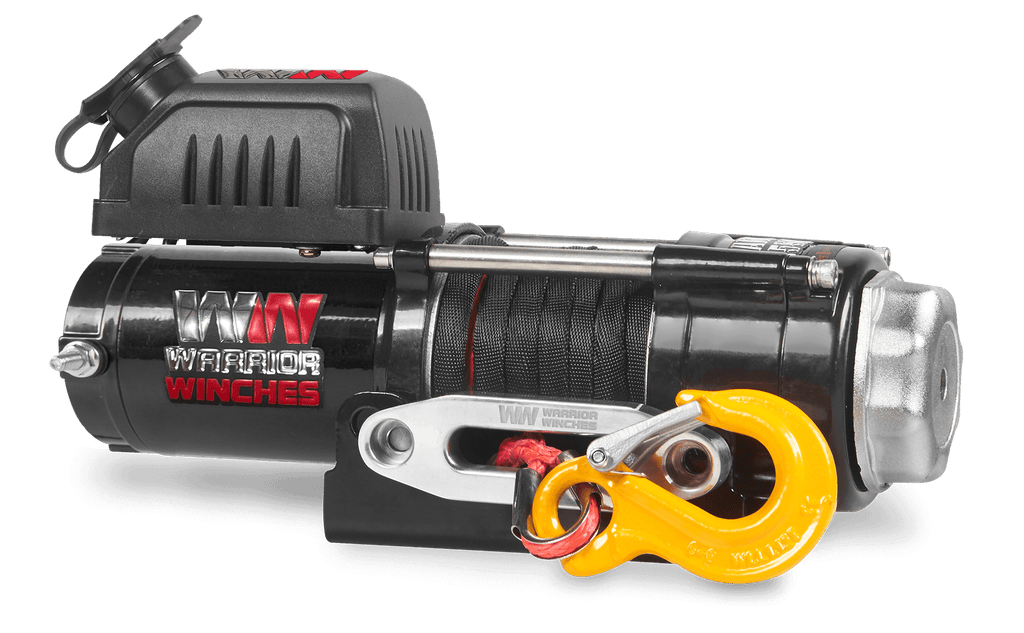

Ninja 2500 Electric Winch - 12v Synthetic Rope

Warranty: 3 Years

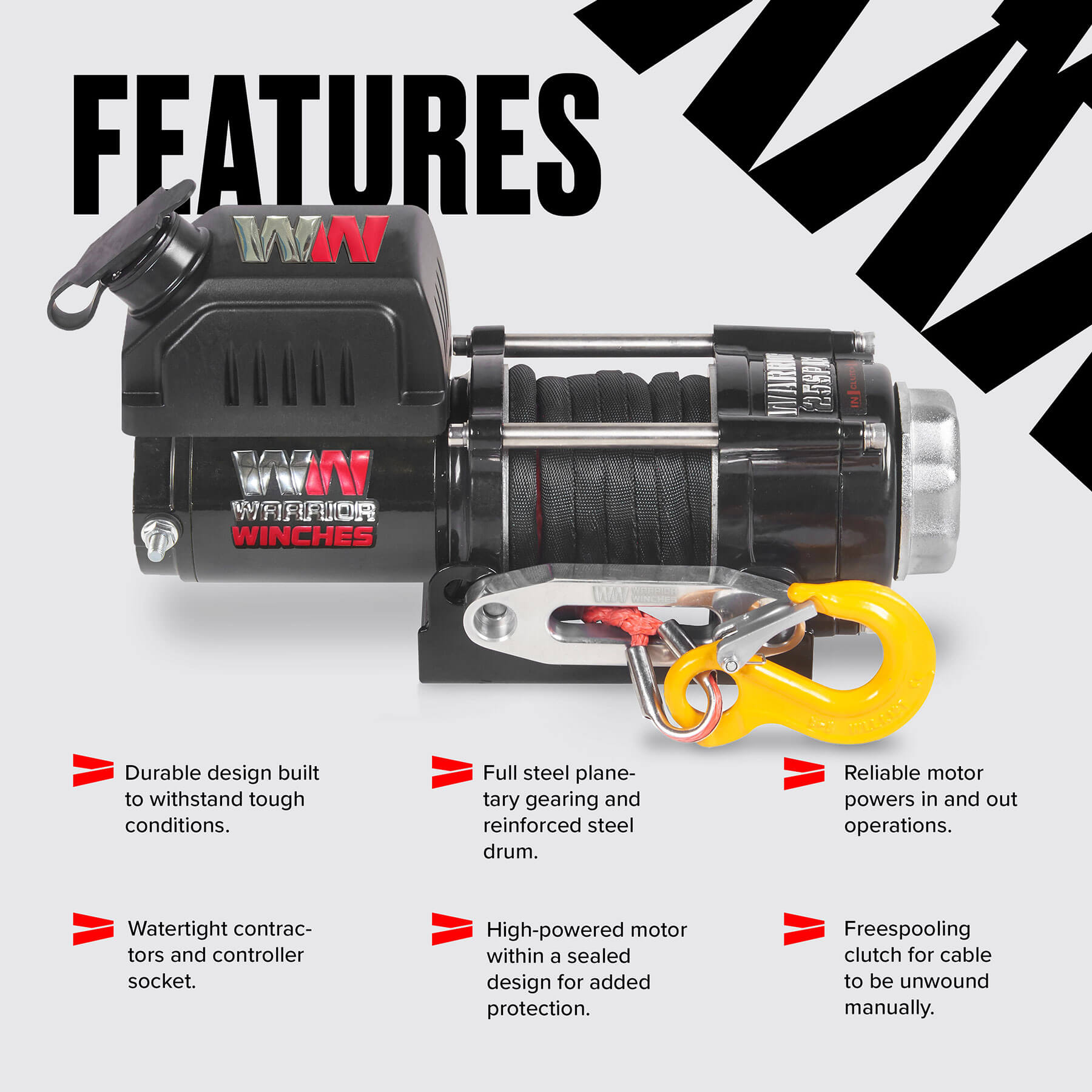

Features

  • Power You Can Depend On Off-Road - The sealed high-power motor is designed to deliver reliable pulling performance even when your recovery takes place in wet, muddy or demanding surroundings.
  • Extra Protection for Critical Components - Heavy-duty watertight contactors help keep water and debris away from the electrical system, supporting reliable operation through challenging recoveries.
  • Strong Gearing for Serious Pulls - Full steel planetary gearing provides a durable and efficient way of transferring motor power, giving you confidence when the 2,500lb capacity is put to work.
  • A Tough Core for Lightweight Rope - The strengthened steel drum provides the robust foundation needed for demanding pulls while pairing perfectly with the easier-to-handle synthetic rope.
  • Keep Your Controls Protected - The watertight controller socket helps prevent moisture and debris from reaching the control connection, helping maintain reliable operation throughout your recovery.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Ninja Range is our performance-focused range of electric winches designed specifically for trailers, quad bikes (ATV) and side-by-side (UTV) recovery. Compact, responsive and built around proven Warrior engineering, Ninja winches deliver the pulling power and control needed to keep recreational and off-road vehicles moving when the terrain gets challenging.

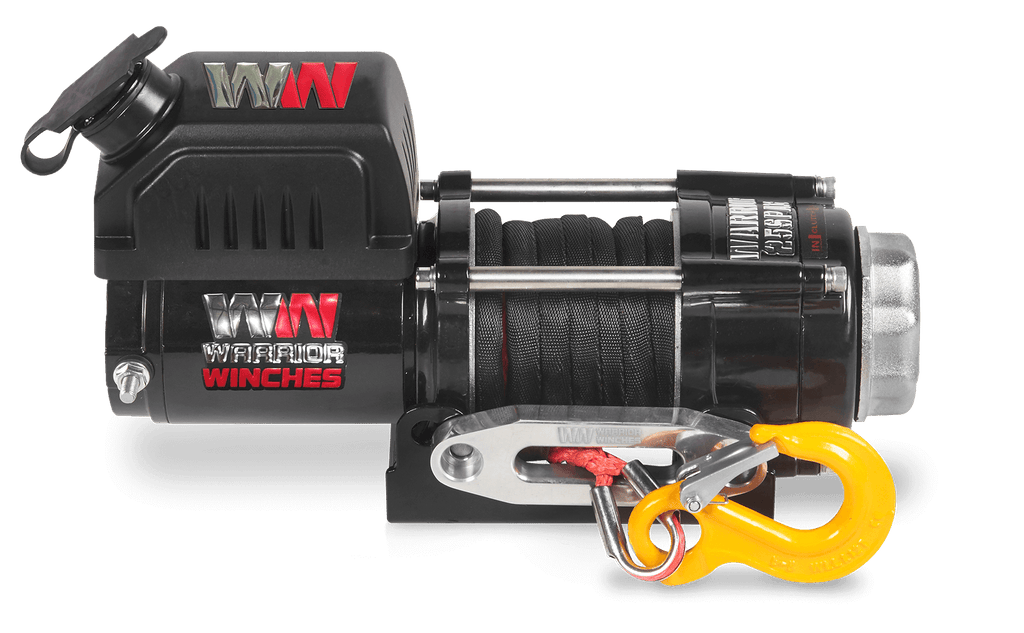

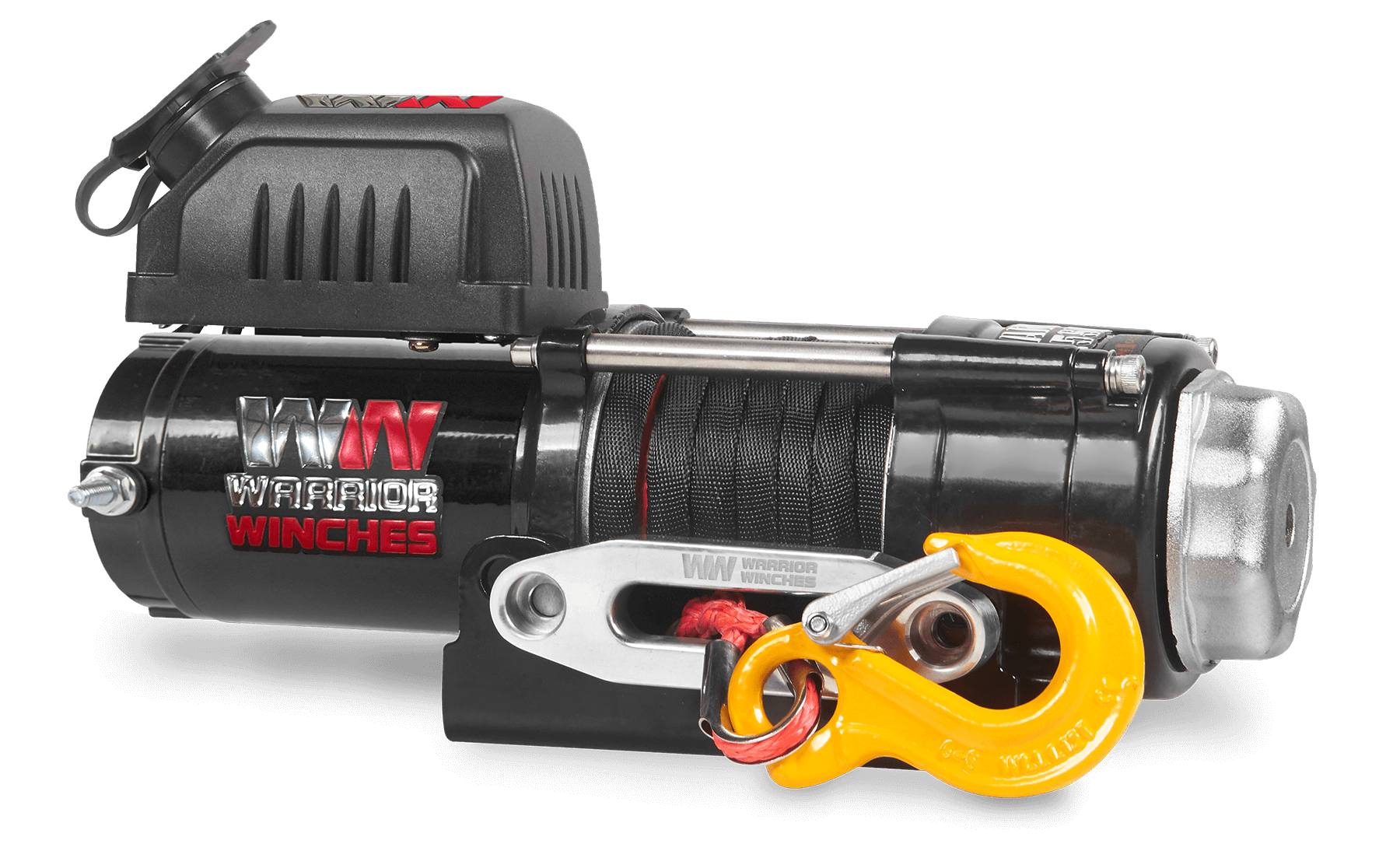

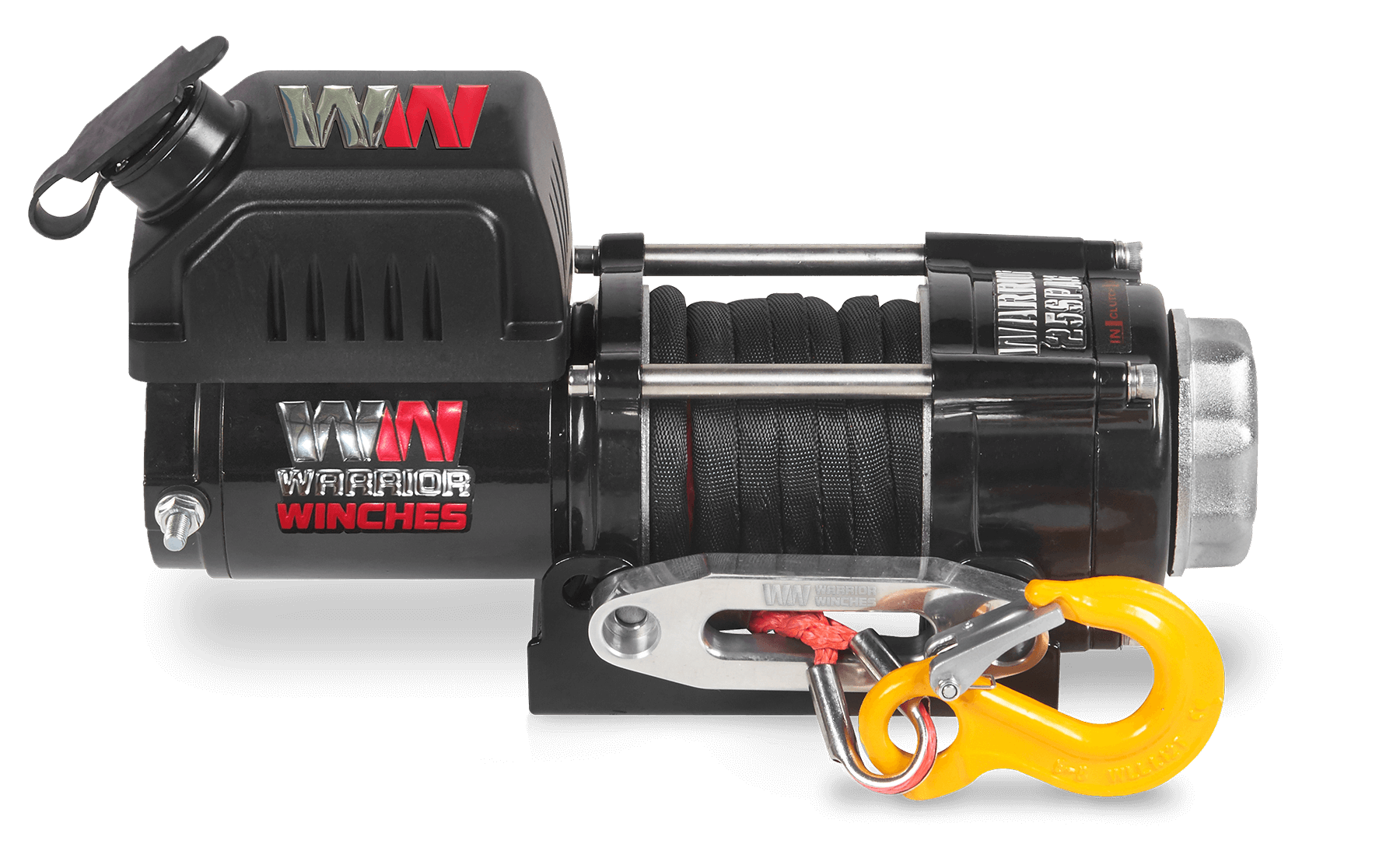

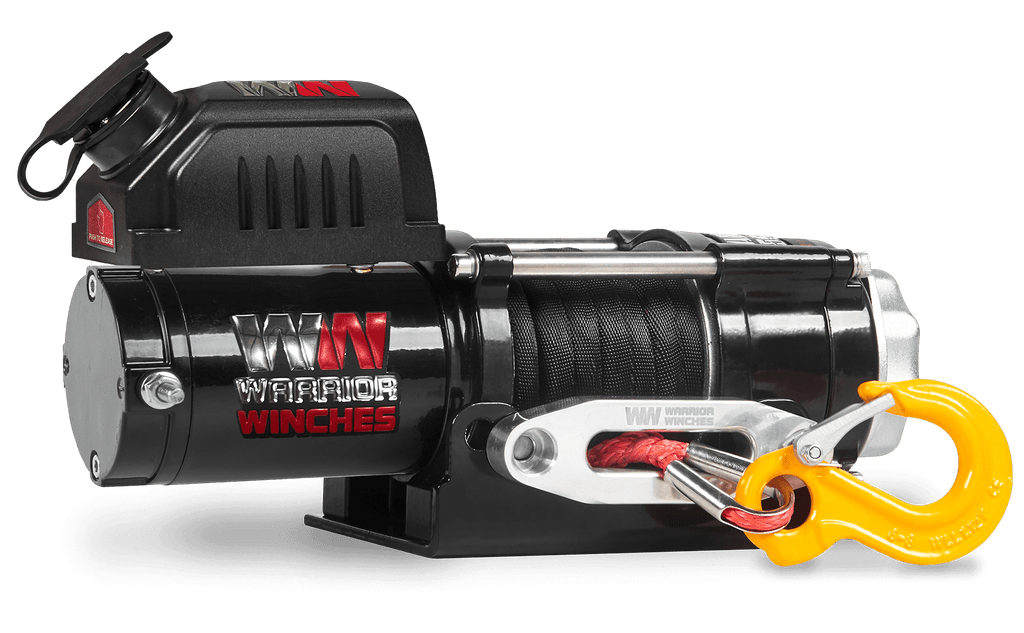

The Ninja 2,500lb 12V electric winch with synthetic rope delivers 2,500lb (1,134kg) of rated line pull, giving quad bike and side-by-side riders additional recovery capability without adding unnecessary weight or bulk. With a powerful 2.6hp motor, lightweight synthetic rope and a compact 7.5kg design, it provides the performance needed for demanding off-road recovery while remaining well suited to smaller vehicles.

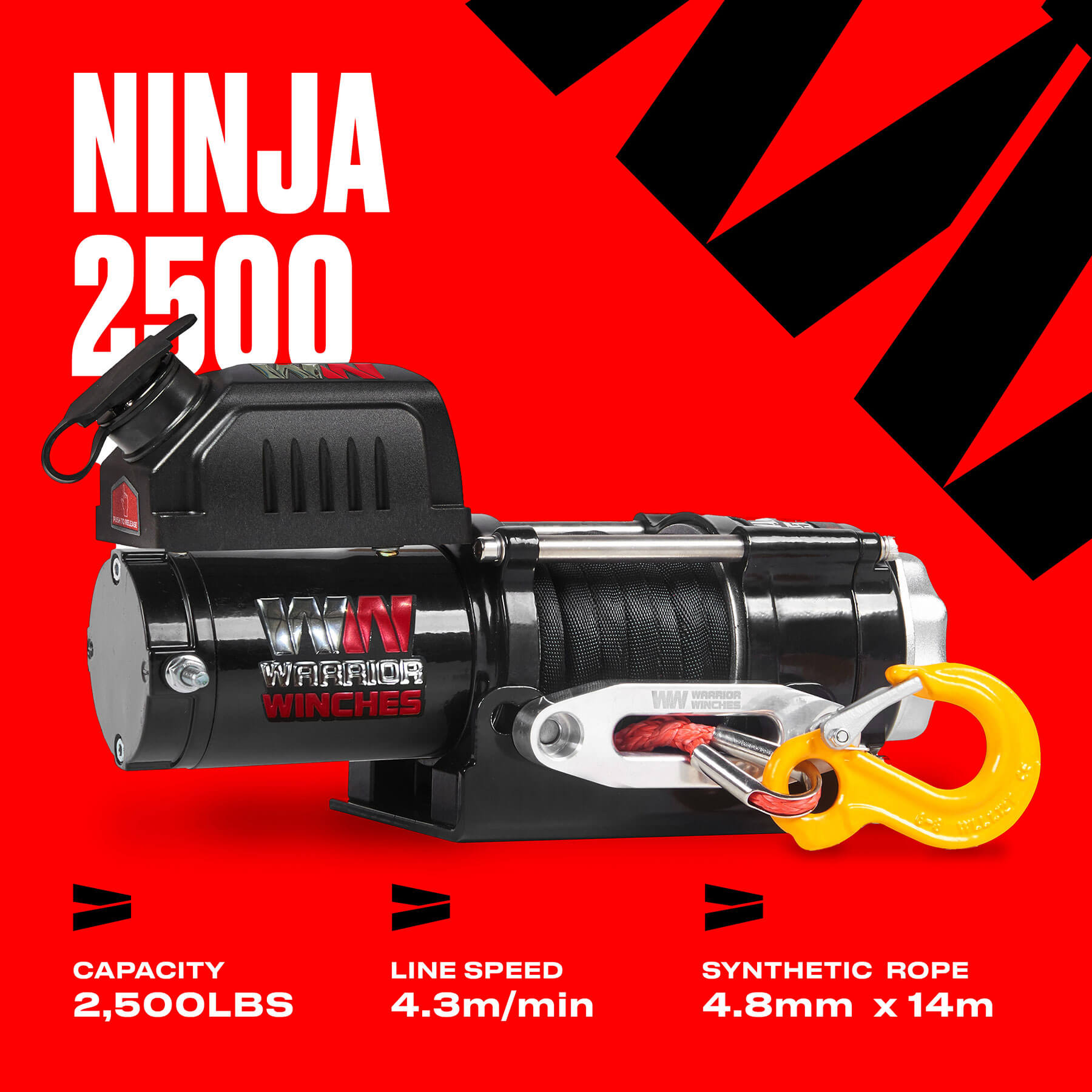

2,500lb of compact recovery performance. The 2.6hp (1.9kW) 12V motor delivers up to 2,500lb (1,134kg) of rated line pull through a 170:1 planetary gearing system. This gives you extra pulling capacity when dealing with mud, steep ground, obstacles and difficult recovery situations, while keeping the winch compact enough for quad bike and side-by-side applications.

Synthetic rope for easier handling. The 14m x 5mm synthetic rope provides a lightweight alternative to steel, making it easier to deploy and handle when setting up a recovery. The supplied hawse fairlead provides a smooth route for the rope, while the included 1/4 hook gives you a secure connection point when you're ready to pull.

Power when you need it. The permanent magnet motor provides reliable pulling power in both directions, giving you the flexibility to manage the recovery from initial line positioning through to getting the vehicle moving again. Combined with full steel planetary gearing, the Ninja 2,500lb is built to deliver dependable performance under load.

Quick line deployment. Less time setting up. The manual freespooling clutch allows you to disengage the gearbox and pull the synthetic rope out by hand. This makes it easier to reach your recovery point and position the line exactly where you need it before engaging the winch.

Built for demanding off-road conditions. A sealed high-power motor, heavy-duty watertight contactors and full steel planetary gearing provide a durable foundation for repeated recovery work. The strengthened steel drum is designed to withstand demanding pulling tasks, while the watertight controller socket helps protect the control connection from moisture and debris.

Extra pulling options when the trail gets tough. The included 2-tonne pulley block gives you another recovery option when additional mechanical advantage is required. Used as part of a suitable rigging setup, it can help increase the effective pulling capability available when tackling more challenging situations.

More capability without extra bulk. Measuring just 335 x 113 x 188mm and weighing 7.5kg, the Ninja 2,500lb provides increased pulling capacity without becoming unnecessarily large or heavy. Its compact footprint makes it particularly suitable for quad bike and side-by-side applications where mounting space and vehicle weight are important considerations.

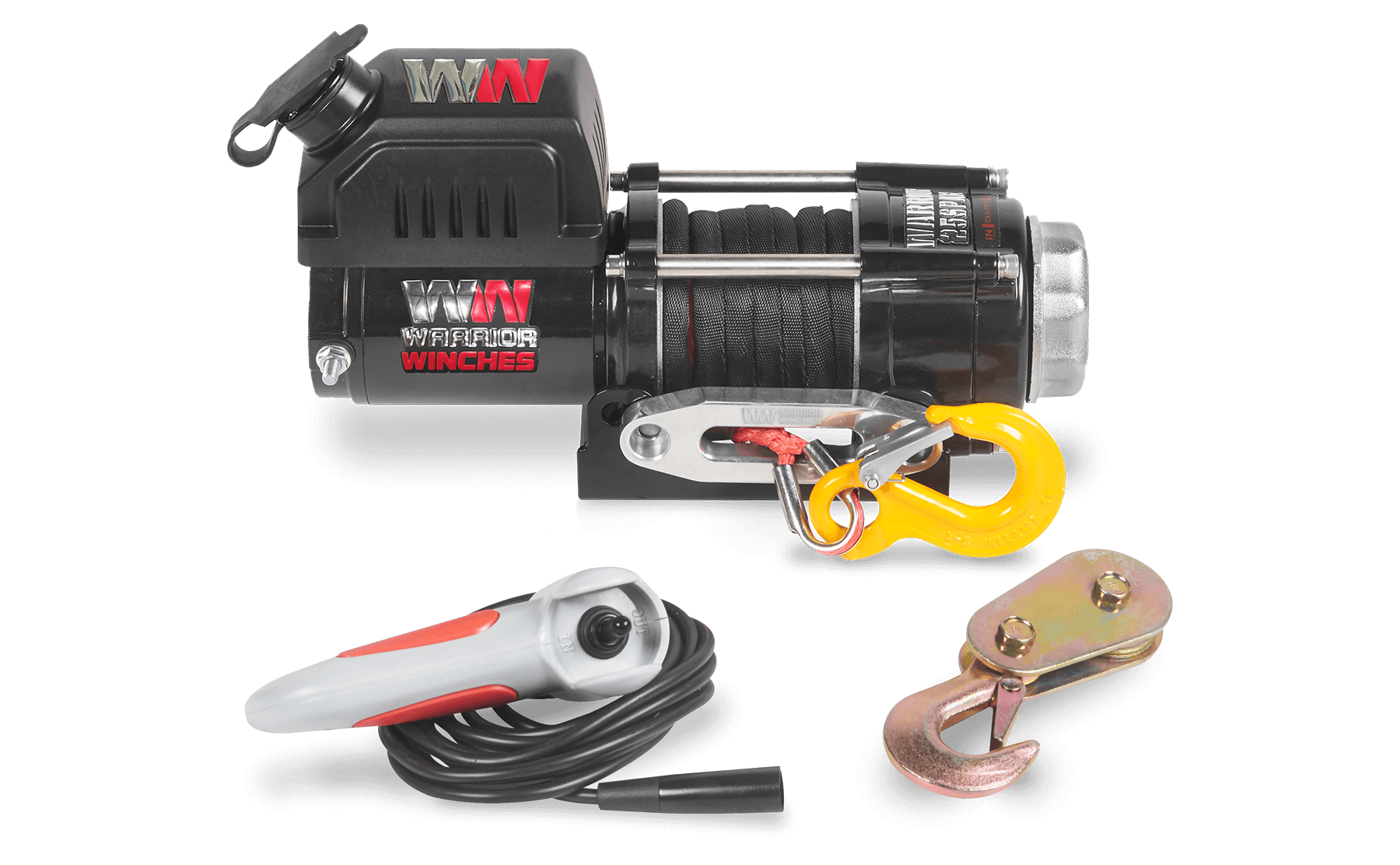

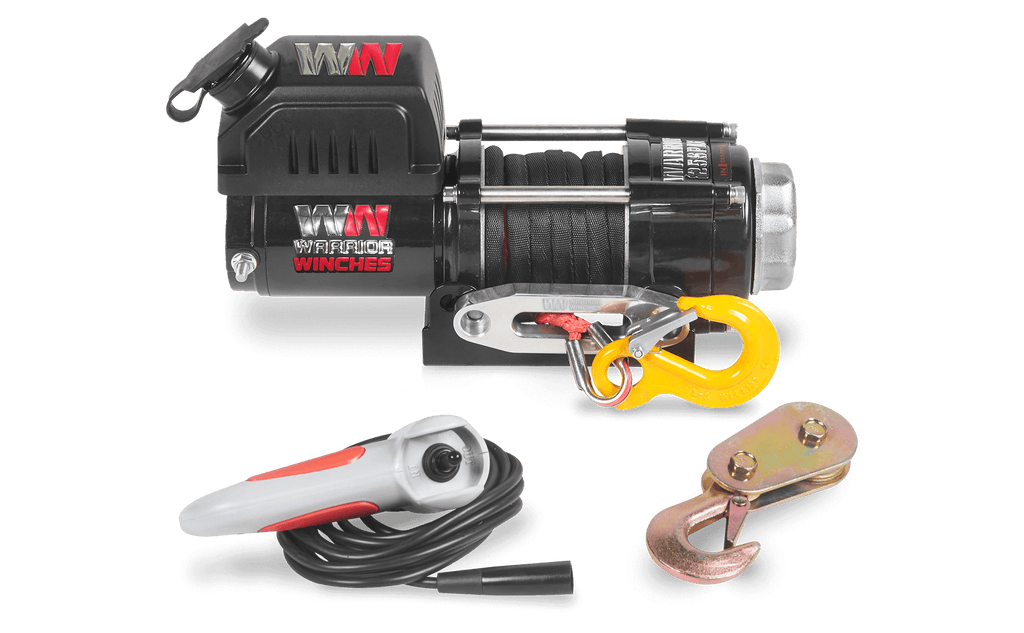

Ready for your next adventure. The Ninja 2,500lb comes supplied with synthetic rope, hawse fairlead, heavy-duty battery leads, a 3.8m wired remote, 1/4 hook, 2-tonne pulley block, mounting plate and mounting hardware. With the essential recovery equipment included, you can get the winch installed and ready for the trail.

Backed by a 3-year warranty, the Warrior Winches Ninja 2,500lb 12V electric winch with synthetic rope delivers lightweight performance, increased pulling power and dependable control for demanding ATV, quad bike and side-by-side recovery.

Sku25SPA12
EAN5060423980636
Rated Line Pull2500 lbs
Motor Type12V: Input: 2.6hp / 1.9kW; Output: 1.1hp / 0.8kW
Rated Volt12
ClutchManual
Gearing170:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Drum Size (Diameter x Length)37.0 x 80.0 mm
ControlsWired Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length) 5.0 mm x 14.0 m
FairleadHawse
Mounting Pattern124mm x 76mm mm

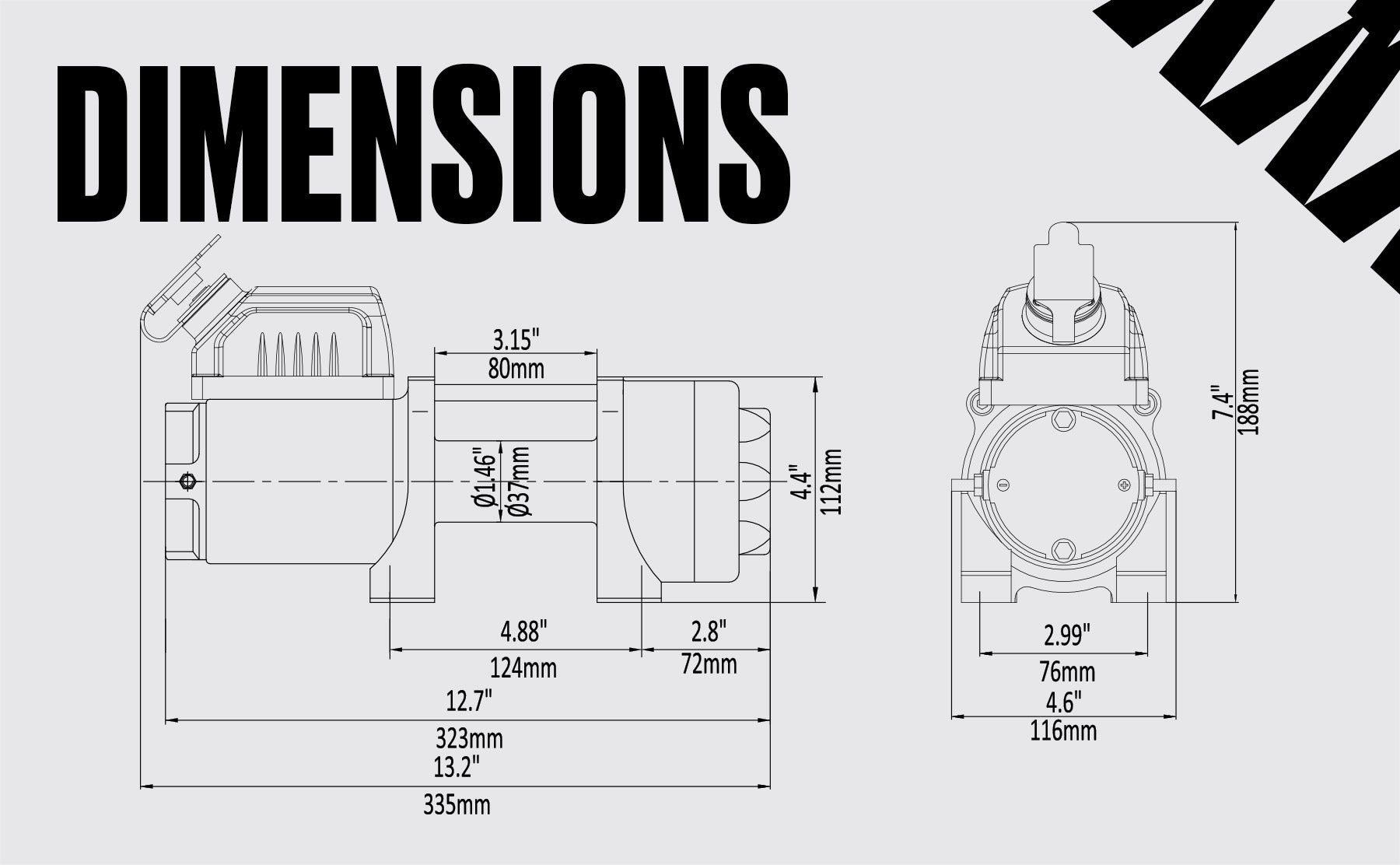

Dimensions335 x 113 x 188 mm
Weight7.5 kg
Warranty3 Year
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 2500 (1134)
2 2033 (922)
3 1713 (777)
4 1480 (671)
5 1303 (591)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 14.1 (4.3) 10.5 (3.2) 2016
500 (227) 9.8 (3.0) 10.2 (3.1) 55 35
1500 (680) 7.5 (2.3) 9.2 (2.8) 95 65
2500 (1134) 4.3 (1.3) 8.2 (2.5) 160 100
  • Ninja Winch
  • Fairlead
  • Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 1/4 Hook
  • 2 Tonne Pulley Block
  • Mounting Plate
  • Mounting Hardware
User Manual Download
Technical Drawing Download
Specifications Sheet  Download

Warrior Winches 3 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
